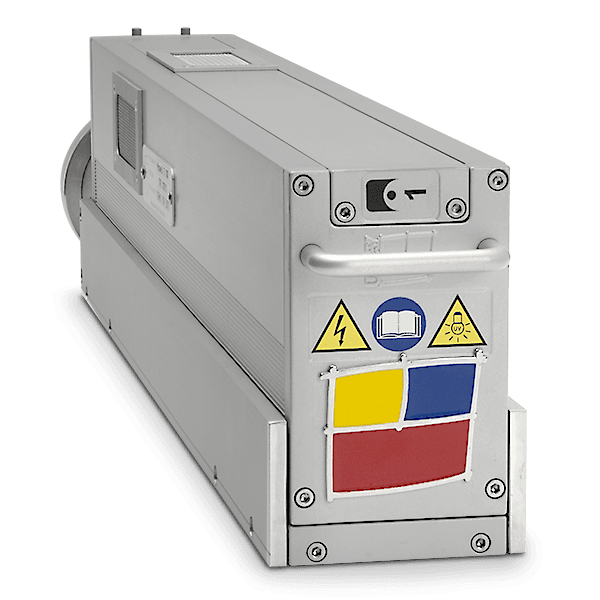

CI

Compact Reflector

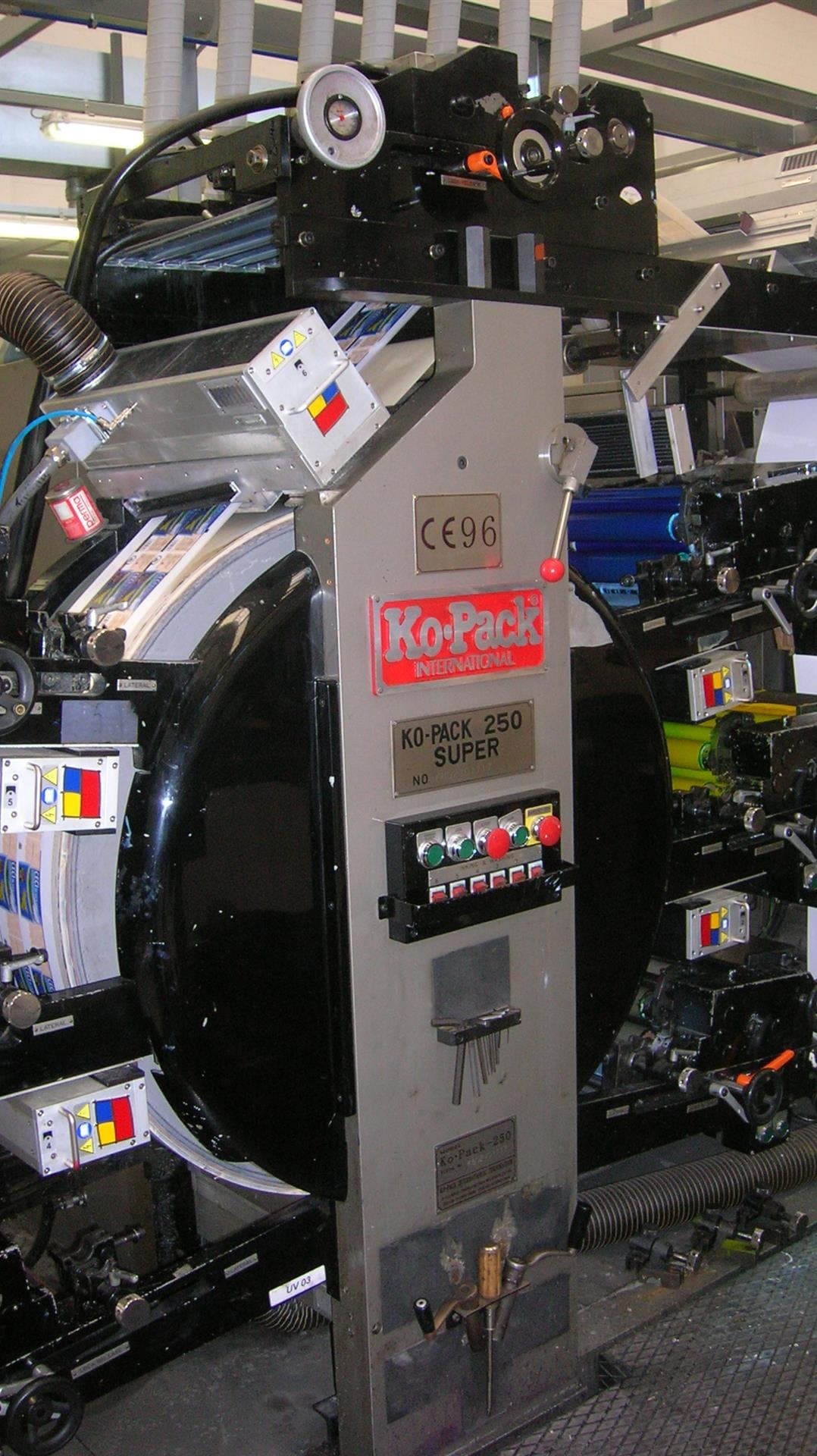

As the smallest reflector of the UV Ray family, CI is an ideal solution when space is limited such as with small central impression (CI) presses, also known as a drum or common impression press.

CI is also useful in applications where some UV calibration performance or minimal UV output is required.

Technologies
Download CI specifications
Applications

Silkscreen printing
Flexo printing
Letterpress printing

CI benefits include:
  • Extremely compact size
  • True dichroic mirror solution with borosilicate glass, available with multiple coating options for a range of applications
  • Robust construction entirely made of extruded aluminum
  • Pneumatic shutter
  • Available up to 350mm
  • Fully extractable cassette technology for fast and easy lamp cleaning, maintenance, or component replacement (less than 120s)
  • Very low working temperatures
  • Special lamps with reduced diameter for greater efficiency
  • Available with water-based and chill-roll mounting
  • Aluminum reflector available
  • Retrofits available
  • Internet remote service with encrypted communication
  • Infrared filter installed as standard
  • Exclusive technology, made in Italy
Power Supplies

UV Ray’s new PowerMaxx suite of power supplies, engineered in-house and based on 20+ years UV/LED curing experience, offers printers the highest energy efficiency and environmental compatibility in a sleek, compact design to power all UV Ray reflectors and LED lamps.

Pure
Pure

Hybrid or LED with no loop control

Hybrid
Hybrid

UV/LED + fan drive

LED
LED

Up to three LED lamps in a single unit, offering significant savings in energy and cost
